Yongnuo YN-622 Transceiver Sæt

YN-622 Trådløs-Wireless TTL Flash Trigger

YN-622C E-TTL trådløs trigger er en high performance master/slave sender og modtager, der ved hjælp at digital FSK 2,4 GHz radiosignaler kan give mulighed for mange spændende muligheder og effekter fx lige så mange modtagere (og derved flash) som man har lyst til - med YN-622 er du kun begrænset af din fantasi. Senderen kan sende op til 100m, der er 7 radiokanaler og tre grupper A/B/C.

Du kan fjernstyret fra kameraet ændre opsætning,når du bruger Canon EOS spejlrefleks serien som understøtter brug af ts external flash function, fx TTL ratio - eller manuelt , såvel som flash styrke. 622 understøtter højhastigheds synkronisering op til 1/8000s, understøtter E-TTL, manuel og multi flash modes. E-TTL flash kan monteres ovenpå senderen.

Teknisk data

YN-622C E-TTL wireless flash trigger is a high per formance  master  and  slave  equipment  of  multiple flashes photography, through digital FSK 2.4GHz radio wireless transmission, and different photographic effects
can be realized through setting your flash at 360 degrees.It design of transceiver, the distance of remote control reaches 100M, suppor ting 7 wireless channels and A/B/C three groups.

Remotely change the modes and parameters of the flash quickly when using the Canon EOS series DSLR cameras which suppor ts external flash function , such as T TL ratio or  manually set each group of flash output. Support high-speed  sync, the max sync speed is 1/8000s*,Support E-TTL, Manual and Multi flash modes. Support E-TTL flash installing on the top of transmitter.

YN-622C 2 transceivers kit consist two similar transceivers,  suppor t  one camera controlling multiple flashes at the same time. Install the flashes with the receiver additionally purchased to make  them into an application form of multiple-flashes,  number of the receivers is not limited.

Compatible with ALL YongNuo/ Canon EXII series flashes?and strobe flashes.
Compatible to 5D Mark III
Compatible to new speedlite 600EX RT

Supported Functions List
Compatible flash mode: E-TTL (II)/ Manual/ Multi
Compatible Shutter sync: 1st curtain, 2nd curtain,high speed sync (HSS/FP), Max 1/8000s sync speed
Control remote  flash  using  camera's flash control menu screen(Remote Control Mode)
Support E-TTL / Manual/ Multi flash mode mix using(Mix Control Mode)

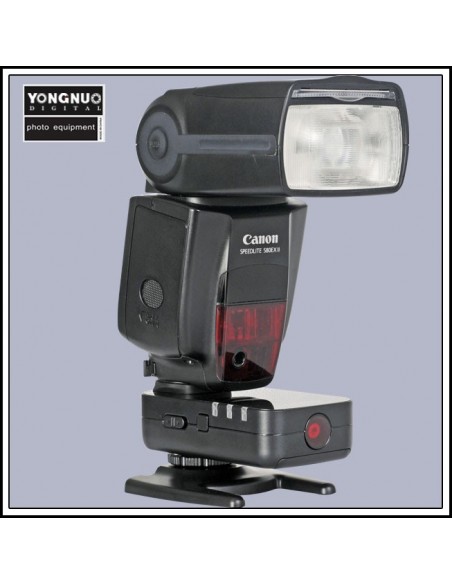

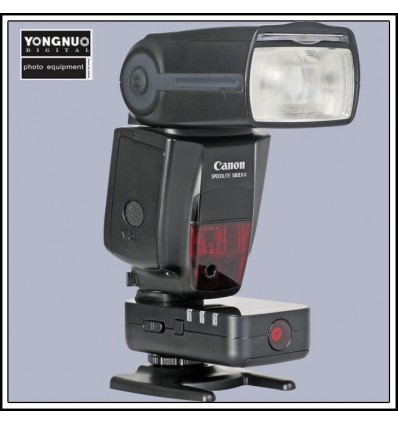

Flash on hot-shoe of transmitter supports ETTL
Support Flash Exposure Compensation (FEC)
Support Flash Exposure Bracketing (FEB)
Support Flash Exposure Lock (FEL)
Support modeling Flash
Support E-TTL group ratio (ALL/ A:B/ A:B C)
Support Manual/Multi group (ALL/ A:B/ A:B:C)
Support flash zooming (auto, manual)
Support AF assist beam emitter(AF Lamp)
Support PC port triggering strobe flashes and support 1st, 2nd cur tain/HSS (Super Sync)
Support LCD Live view triggering
Support high-speed continuous shooting trigger
Settings saved automatically
Compatible  with  ALL  YongNuo/  Canon  EXII  series flashes
Suppor t single-contact of camera & flash triggering
(max sync speed is 1/250s)

*On compatible cameras/flashes

 manual:
http://www.yongnuoebay.com/sm/yn622cy.pdf
