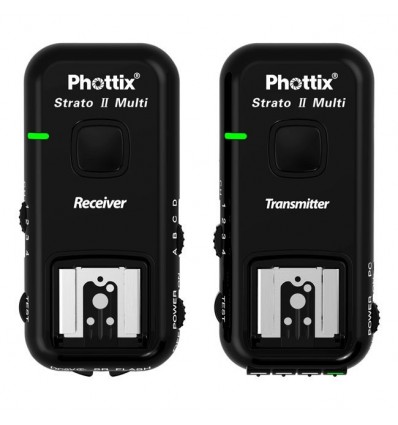

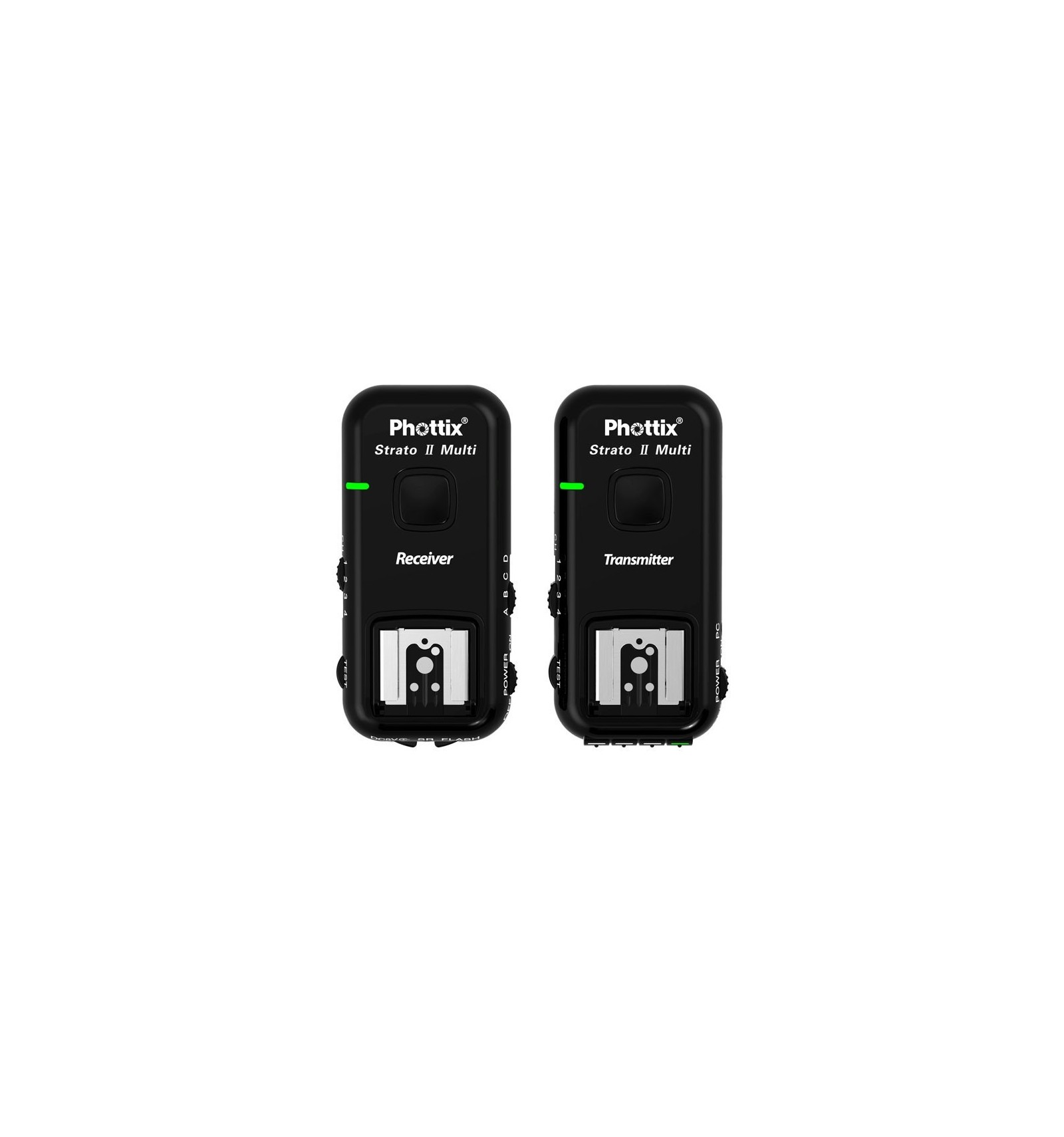

Phottix Strato II Multi 2.4GHz Trigger sæt 5i1 Nikon

Produktbeskrivelse


Realiseringen af ??et klassisk udløser bedre! Den Phottix Strato ™ II Multi 5-i -1 Wireless Trigger System giver
fotografer utrolig kontrol over deres blinker og studie lys. Fire kanaler og fire grupper
giver uovertruffen kontrol i studiet eller on location . Den Strato II Multi kan bruges som en kablet eller
trådløs udløseren . Den 2,4 GHz. sender og modtagere tilbyde serier af mere end 150 meter
og sync med hastigheder på 1/250 sekund. *

Transmittere har en innovativ TTL pass -through hot shoe - tillader fuld TTL skal bruges med et
 kamera monteret flash. Modtagere tilbyder flash wake -up-funktioner . *

Det er hurtigt , sexet, og kraftfuld - perfekt til dit studie eller location arbejde.

features :

- 4 grupper : A , B , C, D
- 4 kanaler
- 150 + m rækkevidde
- 1/250 sek. sync speed *
- Flash wake -up-funktioner *
- Hot shoe / PC Flash udløser
- Studio strobe udløsning
- Kablede og trådløse udløseren funktioner
- Pass -through hot sko på transmitter giver mulighed for kameraets blitz til at bruge TTL -funktioner
- 2,4 GHz. frekvens
- Bruger AAA batterier
- Kompatibel med Phottix Strato ™ 4-i -1 Wireless Triggers



Nikon version omfatter shutter kabler til :
N6 : D70s/D80
N8 : N90s/F5/F6/F100/F90/F90X/D1/D1H/D1X/D2/D3/D2H/D2Hs/D2X/D2Xs/D200/D300/D300s/D700
N10 : D90 / D3100/D5000/D7000


* På kompatible blinker og kameraer

tekniske specifikationer
Frekvens : 2,4 GHz
Rækkevidde: 150 + m
Kanaler : 4 kanaler
Grupper : 4 grupper - A , B , C, D
Batterier: 2 x AAA batterier ( sender og modtager)
5V DC (ekstern strøm port)
Max sync hastighed: 1/250 sec *
Output: Hot shoe , 3,5 mm, 2,5 mm porte ( receiver )
Indgang: 3,5 mm PC -indgang (sender)
Attachment : 1/4 stativ lug , kolde sko ( Modtager)
Input spænding: 2.5 - 3.2V
Minimum responstid: 350US (For Canon ) ,
800us (For Nikon )
Top porte: TTL -port på toppen af ??senderen
C / F port spænding håndtering: 5V
Flash port spænding håndtering: 6V (sender)
300V (receiver)
Karosserimål: 87 (L) * 40 (W) * 38 (H ) mm
(sender) , 85 (L) * 40 (W) * 36 (H) mm ( receiver )
Antenne: Indbygget PCB -antenne
Vægt: 60g (sender ), 49g (modtager)
Driftstemperatur: -15 +65 C
Opbevaringstemperatur : -30 +85 C

Bemærk: Sony HVL- F42AM flash vil arbejde på Strato senderen , men ikke på den Strato Receiver som HVL- F42AM har ingen manuel tilstand , kun TTL.


Bemærk venligst : Strato er ikke kompatibel med Yongnuo 465

Making a classic trigger better! The Phottix Strato™ II Multi 5-in-1 Wireless Trigger System gives
photographers incredible control over their flashes and studio lights. Four channels and four groups
provide unparalleled control in the studio or on location. The Strato II Multi can be used as a wired or
wireless shutter release. The 2.4 GHz. transmitter and receivers offer ranges of more than 150 meters
and sync at speeds of 1/250 second .*

Transmitters feature an innovative TTL pass-through hot shoe - allowing full TTL mode to be used with a
 camera mounted flash. Receivers offer flash wake-up functions.*

It's fast, sexy, and powerful - perfect for your studio or location work.

Features:

- 4 groups: A,B,C,D
- 4 Channels
- 150+ m range
- 1/250 sec. sync speed*
- Flash wake-up functions*
- Hot shoe / PC Flash triggering
- Studio strobe triggering
- Wired and wireless shutter release functions
- Pass-through hot shoe on transmitter allows on camera flash to use TTL functions
- 2.4 GHz. frequency
- uses AAA batteries
- Compatible with Phottix Strato™ 4-in-1 Wireless Triggers

Nikon Version includes shutter cables for:
N6: D70s/D80
N8: N90s/F5/F6/F100/F90/F90X/D1/D1H/D1X/D2/D3/D2H/D2Hs/D2X/D2Xs/D200/D300/D300s/D700
N10: D90/ D3100/D5000/D7000

* On compatible flashes and cameras

Technical Specifications
Frequency: 2.4 GHz
Range: 150+m
Channels: 4 channels
Groups: 4 groups – A, B, C, D
Batteries: 2 x AAA batteries (Transmitter and Receiver)
5V DC (external power port)
Max sync speed: 1/250 sec*
Output: Hot shoe, 3.5 mm, 2.5 mm ports (receiver)
Input: 3.5mm PC input port (transmitter)
Attachment: 1/4 tripod lug, cold shoe (Receiver)
Input voltage: 2.5-3.2V
Minimum response time: 350us (For Canon),
800us (For Nikon)
Top ports: TTL port on the top of transmitter
C/F port voltage handling: 5V
Flash port voltage handling: 6V (transmitter)
300V(receiver)
Body dimensions: 87(L)*40(W)*38(H)mm
(transmitter), 85(L)*40(W)*36(H)mm (receiver)
Antenna: built-in PCB antenna
Weight: 60g (transmitter); 49g (receiver)
Operating temperature: -15 +65C
Storage temperature: -30 +85C

Please note: The Sony HVL-F42AM Flash will work on the Strato Transmitter but not on the Strato Receiver as the HVL-F42AM has no Manual Mode, only TTL mode.

Please note: Strato is not compatible with Yongnuo 465
