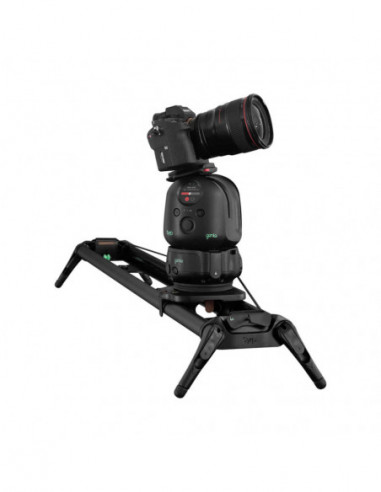

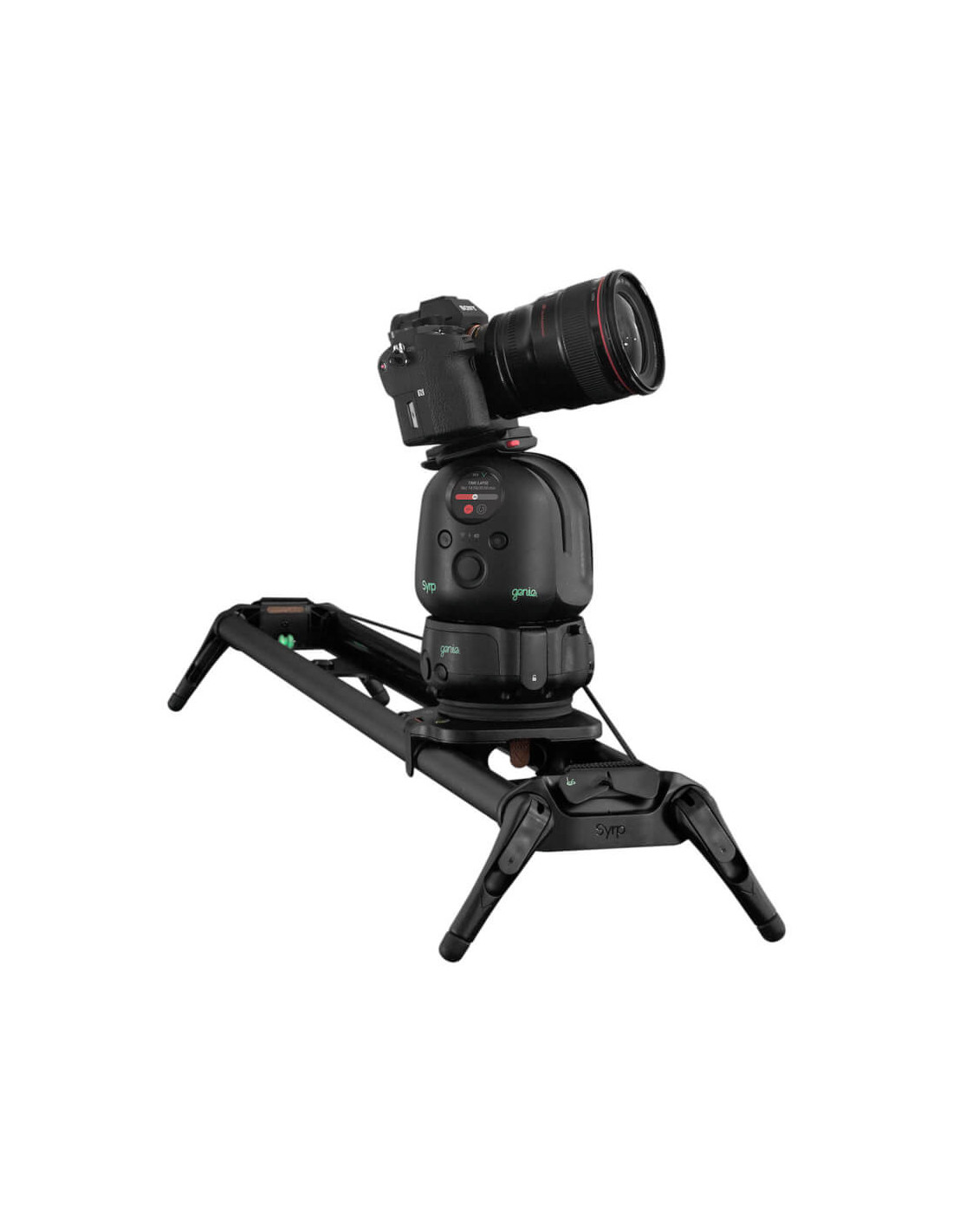

Syrp Genie II 3-Axis Slider Epic Kit 100cm Carriage & End Caps

SYRP Genie II Kit Epic 3-Axis

• Full 3-axis motion control
• Keyframe setup for Time-lapse and Video
• Wireless iOS and Android App control via Bluetooth
• Max payload 5kgs/11lbs (up to 60° Tilt)
• Battery life: 12hrs time-lapse or 8hrs video

Genie II 3-Axis - Epic Kit is made up of two independent motion controllers; Genie II Linear and Genie II Pan Tilt. By combining both with the Magic Carpet slider you have a powerful and portable 3-Axis motion control tool.

Setup is hassle-free with the Pan Tilt and Linear syncing via Bluetooth keeping cables to an absolute minimum. They also take the same Li-ion battery making power management a breeze. Simply attach the Linear to the Magic Carpet slider. Then click in the Pan Tilt straight on top via the quick release system and your 3-Axis kit is set up and ready for almost any filming situation.

Connect wirelessly to the Genie II 3-Axis - Epic Kit with the Syrp Genie 2 App and program complex movements using the built-in keyframe editor to change the speed and timing of all axes independently.

Packed with the latest technology including Bluetooth, WiFi and USB-C, enables many options for future feature releases.

Product Contents
1 x Genie II Linear 1x Genie II Linear Capstan 1 x Genie Rope 3m 2 x Slider Mounts & Velcro Straps 1 x Quick Release Plate 90mm 1 x Quick Release 1/4"-20 Camera Screw Square 1 x Quick Release 3/8"-16 Camera Screw Square 1 x Genie II Pan Tilt 1 x Quick Release Plate 65mm 1 x 1/4"-20 Camera Screw 1 x 3/8"-16 Camera Screw 2 x USB Type-C Charger 2 x USB-C Charger Cable 2 x AU/NZ Plug 2 x USA Plug 2 x EURO Plug 2 x UK Plug 2 x USB-C to USB-A Female Cable 2 x Camera Screw Thread Adapter 3/8"-16 to 1/4"-20 1 x Genie II Linear Setup Guide 1 x Genie II Pan Tilt Setup Guide 2 x Lens Cloth 1 x Magic Carpet Medium Track (100cm) 1 x Magic Carpet Carriage 2 x Magic Carpet End Caps 1 x Magic Carpet Reversible Screw 1 x Counter Weight Rope 3m 1 x Magic Carpet End Caps & Carriage Setup Guide

Specifications
Dimensions: 107 x 13.2 x 23.7 cm
Weight: 5.7 kg
Interface: 2.5mm Shutter Control Port, Bluetooth 4.2 Low Energy, USB-C Port, Wifi 2.4GHz, Colour LCD Display

Max Speed Panning: 25 °/s
Max Speed Linear: 110 mm/s
Max Speed Tilting: 11.25 °/s
Minimum Resolution Linear: 0.01 mm
Minimum Resolution Tilting: 0.01 °

Tripod Mounting: Female 3/8"-16 thread, Female 1/4"-20 thread
Camera Mounting Screw: 1/4"-20 Male, 3/8"-16 Male

Payload Tracking: 5 kg
Payload Vertical: 2.5 kg
Payload Vertical Counter Weighted: 4 kg
Payload Panning: 6 kg
Payload Tilting At 60 Deg: 6 kg
Payload Tilting At 180 Deg: 3 kg

Battery Life Time-Lapse: 12 hrs
Battery Life Video: 8 hrs
Charging Time: 3 hours
Powered By (Batteries): Li-Ion Rechargeable
Charging Mode: USB-C 5V DC, min 1Amp
