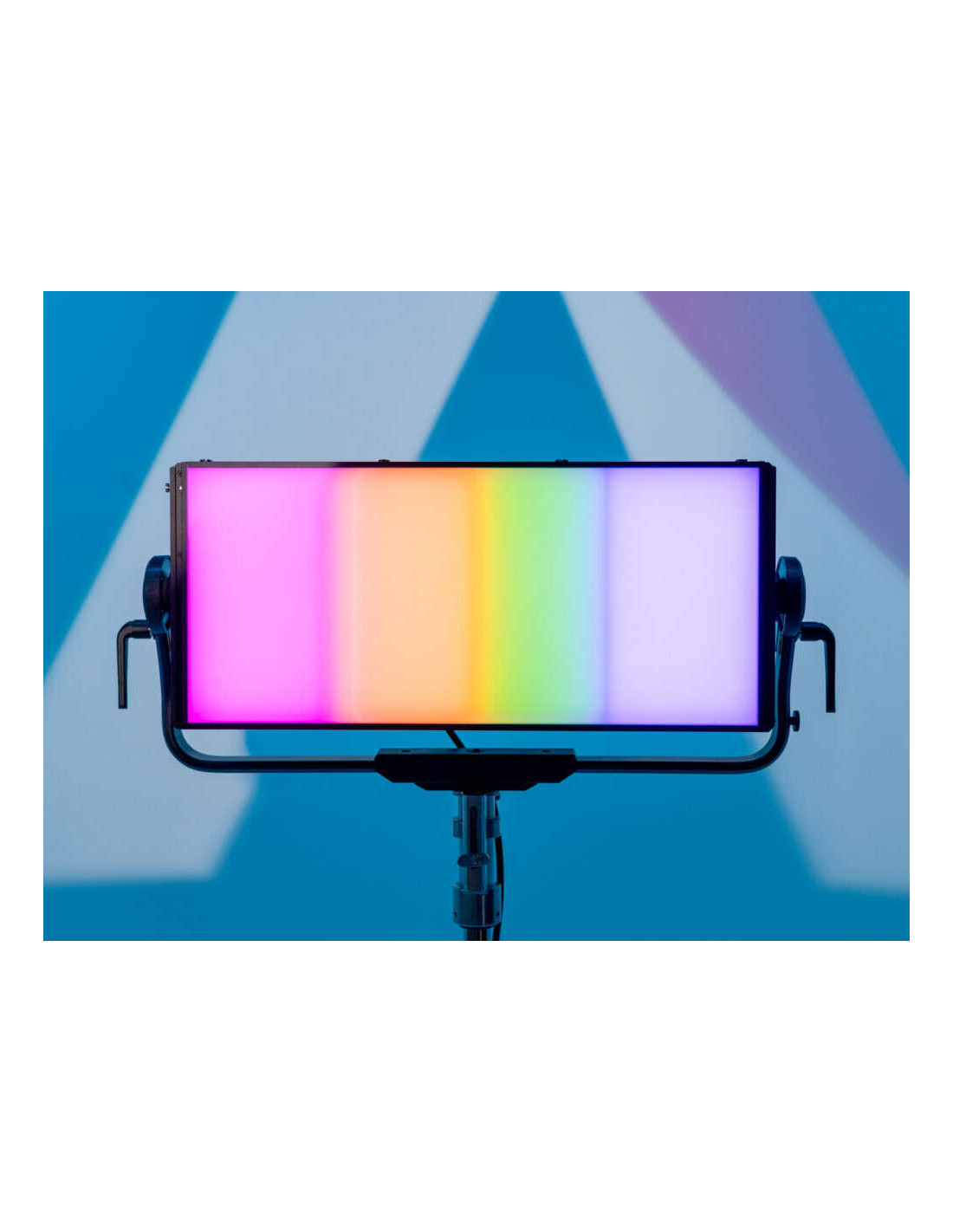

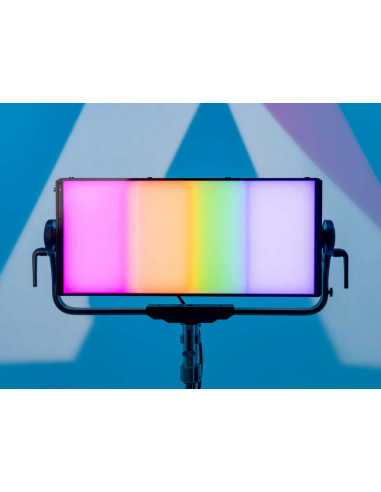

Aputure Nova p600c

The Nova P600c represents the next generation of the Nova family of LED panels, building on the foundation of high color fidelity, 2,000K~10,000K CCT, and soft light quality while also featuring best-in-class output, and a new suite of professional-level controls.

With its 600W RGBWW chipset, the Nova P600c is the brightest 2x1 Soft Panel on the market, boasting an output of 2,298 lux at 3 meters.

The Nova P600c is the first Aputure fixture to feature multiple light engines and pixel control. Its multiple light engines can be activated when using the built-in lighting effects, or can be controlled independently via DMX.

The yoke on the Nova P600c has also undergone an upgrade, now featuring a curved design, similar to the LS 600d Pro and 600x Pro, allowing it to maintain tilt-control when using modifiers, which is difficult for traditionally designed straight yoke LED panels.

In addition to its 3 meter extension cable, the P600c's control box has been updated with contact pins integrated into the Lightning Clamp for completely cable-less operation.

The Nova P600c features a built-in power supply, minimizing weight and setup time. It also features a 48V/15A 3-Pin XLR DC input for users who want to operate the fixture via quiet battery power solutions instead of noisy generators.

As a member of the Aputure family, the Nova has integrated Sidus Mesh technology, allowing it to wirelessly network with other Sidus-enabled lights, all of which can be controlled through the Sidus Link mobile app.

Professional lights deserve professional-level connectivity. In addition to 5-Pin DMX512, lighting technicians can also control the Nova P600c wirelessly using its built-in Lumenradio CRMX.

The Nova P600c can modified using a variety of tools, such as intensifiers, light control grids, and soft boxes, as well as third-party modifiers from brands including DoPchoice & Chimera.

Building upon the Nova P300c's 15 built-in lighting FX, the Nova P600c's 4 light engines adds four more lighting effects including: Color Fade, Color Cycle, Color Gradient, & One Color Chase.

SPECIFICATIONS

CCT 2000K – 10000K

G/M Adjustable ±1.00G

Color Modes HSI, RGB, XY, Gels

CRI ≥95

TLCI ≥95

CQS ≥95

SSI (Tungsten) 84

SSI (D56) 74

TM-30 RF (Average) 95

TM-30 RG (Average) 103

Beam Angle (Half-Peak Angle) 120°

Max Power Output 600W

Max Power Consumption 720W

Operating Current (AC) 8A

Operating Current (DC) 15A

Operating Voltage (AC) 100V~240V

Operating Voltage (DC) 48V DC

DC Input 48V 15A

Cable Type (AC Power) Neutrik® powerCON TRUE1 TOP AC Power Cable (6m)

Cable Type (Head Cable) 5-Pin XLR Head Cable (3m)

Operating Temperature -20°C ~ 45°C / -4°F ~ 113°F

Control Methods On-board, Sidus Link App, 5-Pin DMX512, LumenRadio CRMX

Connectivity Bluetooth 5.0 (Sidus Mesh), LumenRadio CRMX

Firmware Upgradeable USB (FAT16/FAT32), Sidus Link

Display Type OLED

Cooling Method Active Cooling

Mounting Junior Pin

Accessory Mount Nova P600c Accessory Slot

Estimated LED Lifetime (L70) 50,000 Hours

DIMENSIONS

Lamp Head w/ Yoke 80.20*48.15*17.96cm / 31.57*18.95*7.07in

Lamp Head w/o Yoke 63.97*28.49*16.58cm/21.18*11.21*6.53in

Panel Surface 63.97*28.49cm/21.18*11.21in

Control Box 15.75*9.66*4.58cm / 6.20*3.80*1.80in

Lightning Clamp 10.35*8.74*12.5cm/4.07*3.44*4.92in

Carrying Case 93.75*30.65*64.10cm/36.91*12.06*25.23in

WEIGHT

Lamp Head 13.74kg / 30.29lbs

Control Box 0.43kg / 0.947lbs

Case (Empty) 13.7kg / 30.2lbs

Total Weight 27.87kg / 61.44lbs

PHOTOMETRICS

CCT / Distance 1m 3m 5m

2700K 14,586 lux 1,850 lux 725 lux

1,363 fc 173 fc 68 fc

3200K 15,240 lux 1,936 lux 746 lux

1,424 fc 181 fc 70 fc

4300K 15,533 lux 1,945 lux 758 lux

1,452 fc 182 fc 71 fc

5600K 17,520 lux 2,167 lux 847 lux

1,637 fc 202 fc 79 fc

6500K 18,346 lux 2,298 lux 867 lux

1,714 fc 215 fc 81 fc
